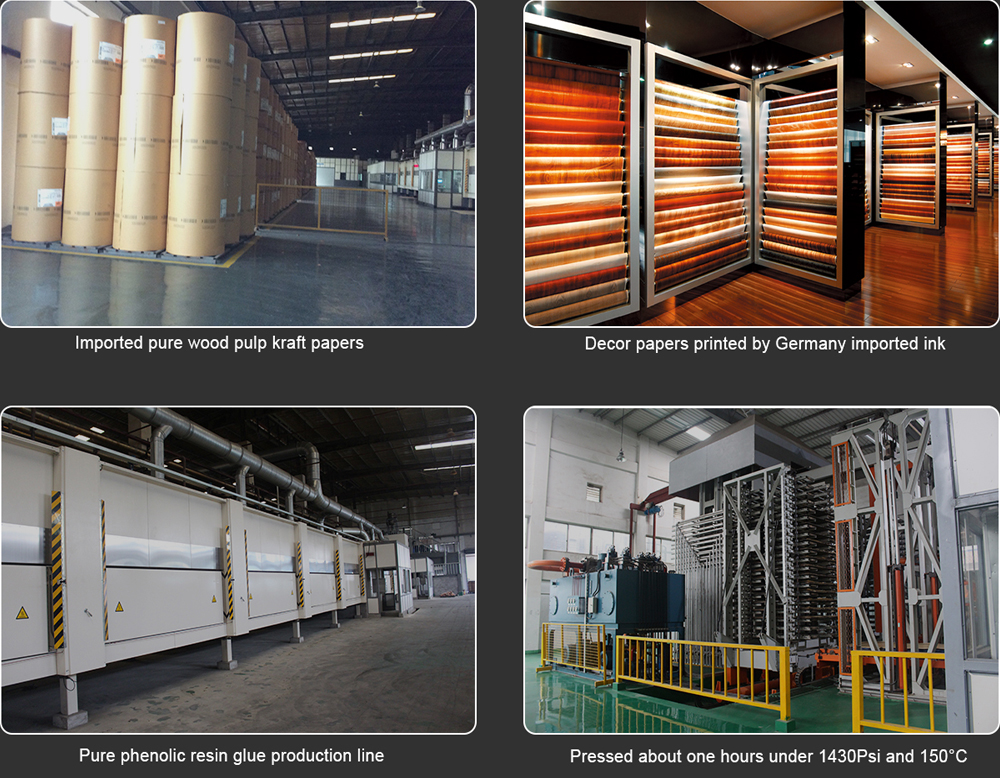

Greenia Laminates are made of imported decorative paper impregnated melamine resin and multilayer high-class imported kraft paper impregnated phenolic resin,which are laminated continuously and equitably by German hot press machine with more than  an hour.


Greenia Laminates are widely applied in kinds of indoor decorative surface,such as furniture,ceiling, cabinent,door,Wall cladding, tabletop and partition etc.

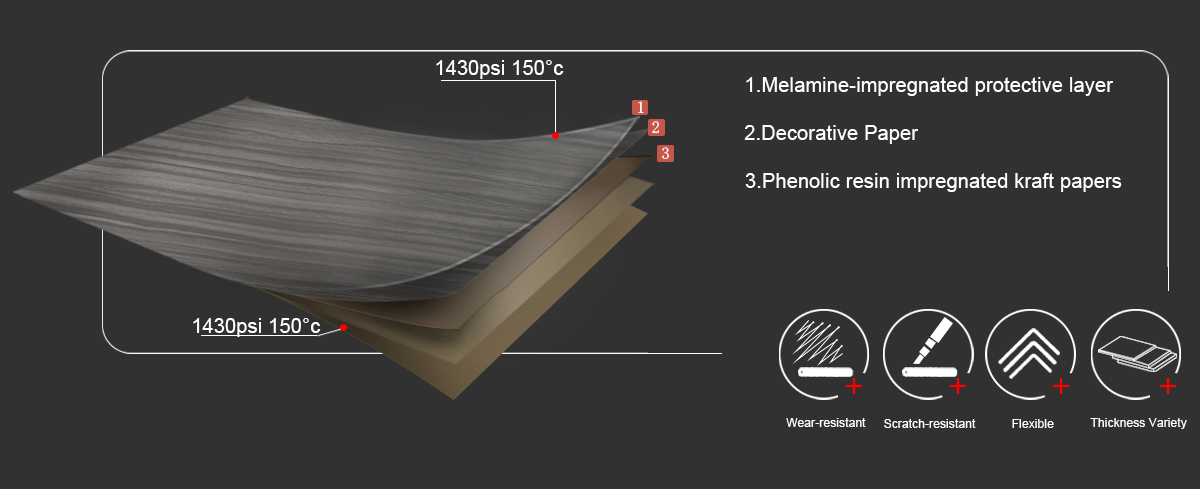

Product Structure






           Product Characteristics





Type Flat Laminate
Post-forming Laminate
Common Thickness
0.8mm
0.7mm
Common Size
4'x8' (1220x2440mm)
4'x10' (1220x3050mm)

Laminate physical performance
0.8mm fiat laminate 0.7mm postforming laminate 1.0mm flat laminate
Greenia Typical Value NEMA standard             NEMA standard
High Temperature Resistance No effect SL-Slight effect SL-Slight effect
Cigarette Resistance
No visible change
SL-Slight effect
SL-Slight effect
Ball Impact Resistance

Height of impact

resistance: 1025mm

≥500mm No change
900mm No change
Light Resistance
No effect
No effect
No effect
Scratch resistance
2N
≥1.5N
≥1.5N
Abrasion Resistance
≥400 cycles
≥400 cycles
400 cycles
Dimensional Stability



Machine Direction

1.1%(max.)
0.6%(max.)
Cross Direction
1.4%(max.)
1.0%(max.)


























Note: NEMA LD3:2005 is the national standard for high pressure decorative laminate in the United States. Please read it carefully on the Greenia company website before using.Website: www.greenia-hpl.com

The typical value doesn't represent the product performance specification. The typical value may be different for different surfaces and decor papers.Above values are tested by SGS-CSTC Standards Technical Services Co., Ltd.If need test certificates,please contact your sales manager or call Greenia company 0086-755-23354285.


Typical Fire Test Data


High-pressure laminates are subject to flame spread index (FSI) and smoke-developed index (SDI) in structures where codes establish such conditions.

Since the tested sample received a Flame spread index 15 and Smoke Developed index 20,it would meet the requirement of Class A interior Wall & Ceiling Finish Category.Burning behavior test method is in accordance with ASTM E84:2011b Standard Test Method for Surface Burning Characteristics of Building Materials.

Typical values for Greenia laminates below are averaged from two specific tests:


Test ltem
Greenia Typical Values

The classes of flame spread index (FSI) and smoke- developed index in

ASTM E 84 or UL 723

Class A
Class B
Class C
Flame Spread Index (FSI)
15
0-25
26-75 76-200
Smoke-developed Index (SDI)
20 0-450 0-450 0-450
Note: Above datas are tested by SGS-CSTC Standards Technical Services Co., Ltd.
